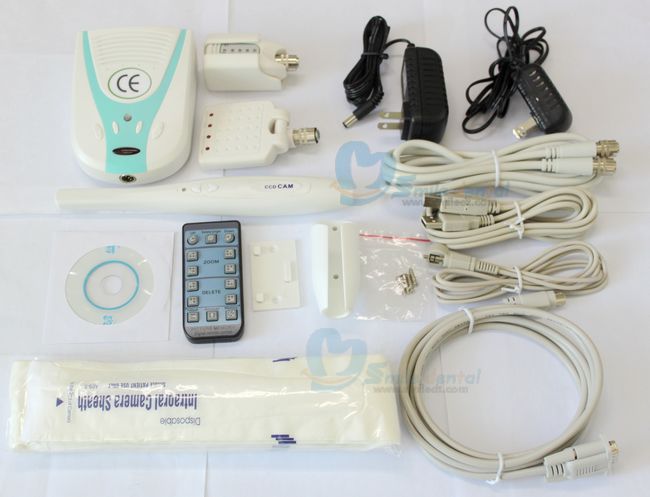

Wireless USB+VGA+AV Intraoral Camera by Zhengzhou Smile Dental Equipment Co., Ltd
- Item Condition:
- Brand:
- Model#:
- Location:
- Price:
Product Description
Features:
Availabe for wire set also.
Crisp, high quality images
Simple operation and installation
Light and easy mobility,with VIDEO & S-VIEDO port to connect with TV, USB port to connect with PC/Notebook,VGA port to connect with Monitor.
Equipped with anti-fog, non-spherical lens
Super-wide automatically adjusting-focus lens
Handpiece holder with automatic power-off function
Singe image screen and 4 image intersected screen can be changed to each other.
With VIDEO, S-VIEDO, USB and VGA output function.
It adopts microwave transmission the same effect with satellite.
Long distance and high clarity image transmission.
Can be captured images by wireless control in store.
It can be wireless controlled quarter image switch.
4 channels option
Can be stored 4x28 PCS pictures totally.
With quickly deleted image, re-captured and enlarge function.
With specific remote control.
Both freeze function of footplate and handiece.
With multi-functional button.
With multi-function of image signal output.
Up and down page can be controlled by the button of handpiece.
It can be with external infrared sensor without any fail.
Specification:
Image sensor :1/4 sony CCD
Image resolution:2.0 mega pixels
Lamp:6 pcs white LED(5600K)
Accumulation point: 5mm~50mm
Photographing visual angle: 70 Degree
Cable length :2m
Frequency:5725~5875MHz
Signal format: NTS/PAL
Channel selection :1-4 channel
Transmit power: 10dBm(about 10m)
Receiving sensitivity : 95dB
Images resolution
Video output: 640x480 pixels
VGA output: 1280x1024 pixels
USB output: 720x480 pixels
